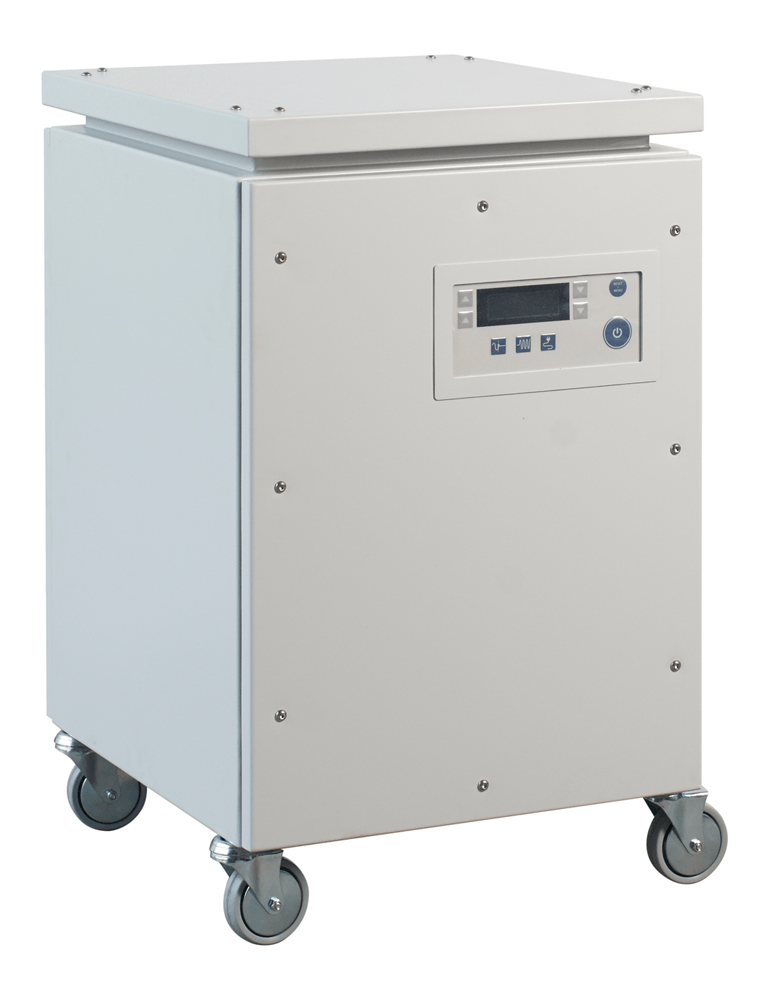

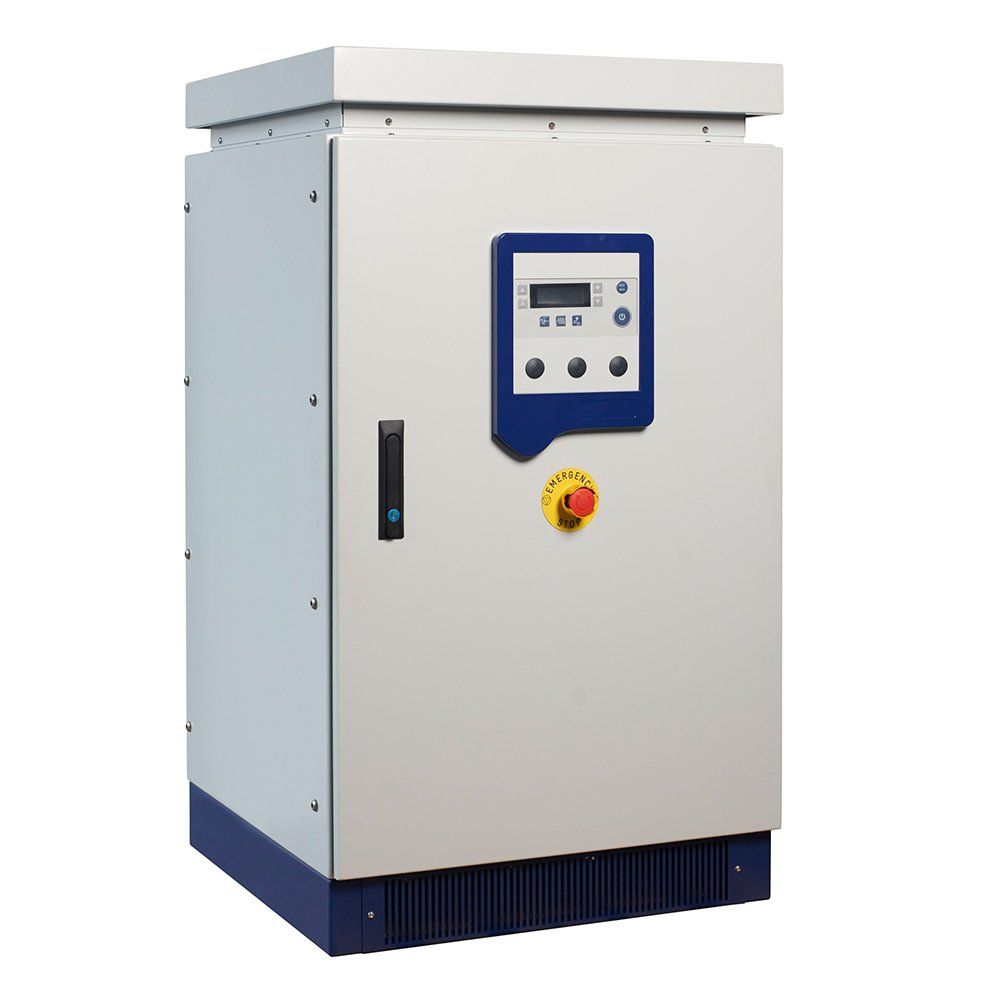

400Hz Frequency Converters
400Hz Frequency
Converters
Features
- IP55 for outdoor use
- Simple daily operation
- Supplied with 25m input cable
- Supplied with 10m output cable fitted with rubber Aircraft plug
- Optional additional 28V DC output (600A continuous / 2400A starting)
- Optional dual outputs
- Optional military interlock
Levon Aviation
is one of the leading European manufactures of Aircraft Ground Power Units which are known in the global markets for their quality, reliability, and ease of operation.
Quality, Reliability, and Simple Operation
Levon Aviation 400Hz Frequency Converters are the safest and most reliable solution for your aircraft ground power. The units are designed with Power Factor correction to guarantee a perfect sinusoidal input current from 25% to 150% load and low THDi (<1.5%).
They are also designed to be environmentally friendly, simple to use, easy to maintain, exceptionally manufactured, and thus, meeting our clients’ strictest requirements, as well as complying with all industry standards.
These GPUs are in operation at the hangars, maintenance facilities, airports around the world and are praised for their performance by both personnel and managers with regard to efficiency, safety and flexibility towards all kinds of aircraft.
400HZ FREQUENCY CONVERTERS / COMBI MODELS
| Model Specifications | Input Voltage | Input Current | Output 1 Voltage | Output 1 Current | Output 2 Voltage | Output 2 Current Continuous | Output 2 Current Peak | Length (mm) | Width (mm) | Height (mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LA30KVA (download datasheet) | 380-415VAC | 43A / 3 PHASE | 115VAC (L-N) | 86A / PHASE | N/A | N/A | N/A | 665 | 560 | 830 | 320 |
| LA30KVA-COMBI (download datasheet) | 380-415VAC | 43A / 3 PHASE | 115VAC (L-N) | 86A / 3 PHASE | 28.5VDC | 600A | 2400A | 705 | 705 | 1250 | 510 |
| LA45KVA (download datasheet) | 380-415VAC | 65A / 3 PHASE | 115VAC (l-N) | 130A / PHASE | N/A | N/A | N/A | 665 | 560 | 830 | 360 |
| LA60KVA (download datasheet) | 380-415VAC | 83A / 3 PHASE | 115VAC (L-N) | 166A / PHASE | N/A | N/A | N/A | 705 | 705 | 1250 | 400 |
| LA60KVA-COMBI (download datasheet) | 380-415VAC | 83A / 3 PHASE | 115VAC (L-N) | 166A / 3 PHASE | 28.5VDC | 600A | 2400A | 810 | 700 | 1525 | 590 |
| LA90KVA (download datasheet) | 380-415VAC | 130A / 3 PHASE | 115VAC (L-N) | 260A / PHASE | N/A | N/A | N/A | 705 | 705 | 1250 | 450 |
| LA90KVA-COMBI (download datasheet) | 380-415VAC | 130A / 3 PHASE | 115VAC (L-N) | 260A / 3 PHASE | 28.5VDC | 600A | 2400A | 810 | 700 | 1525 | 640 |
