Starter
Units
Quality, Reliability, and Simple Operation

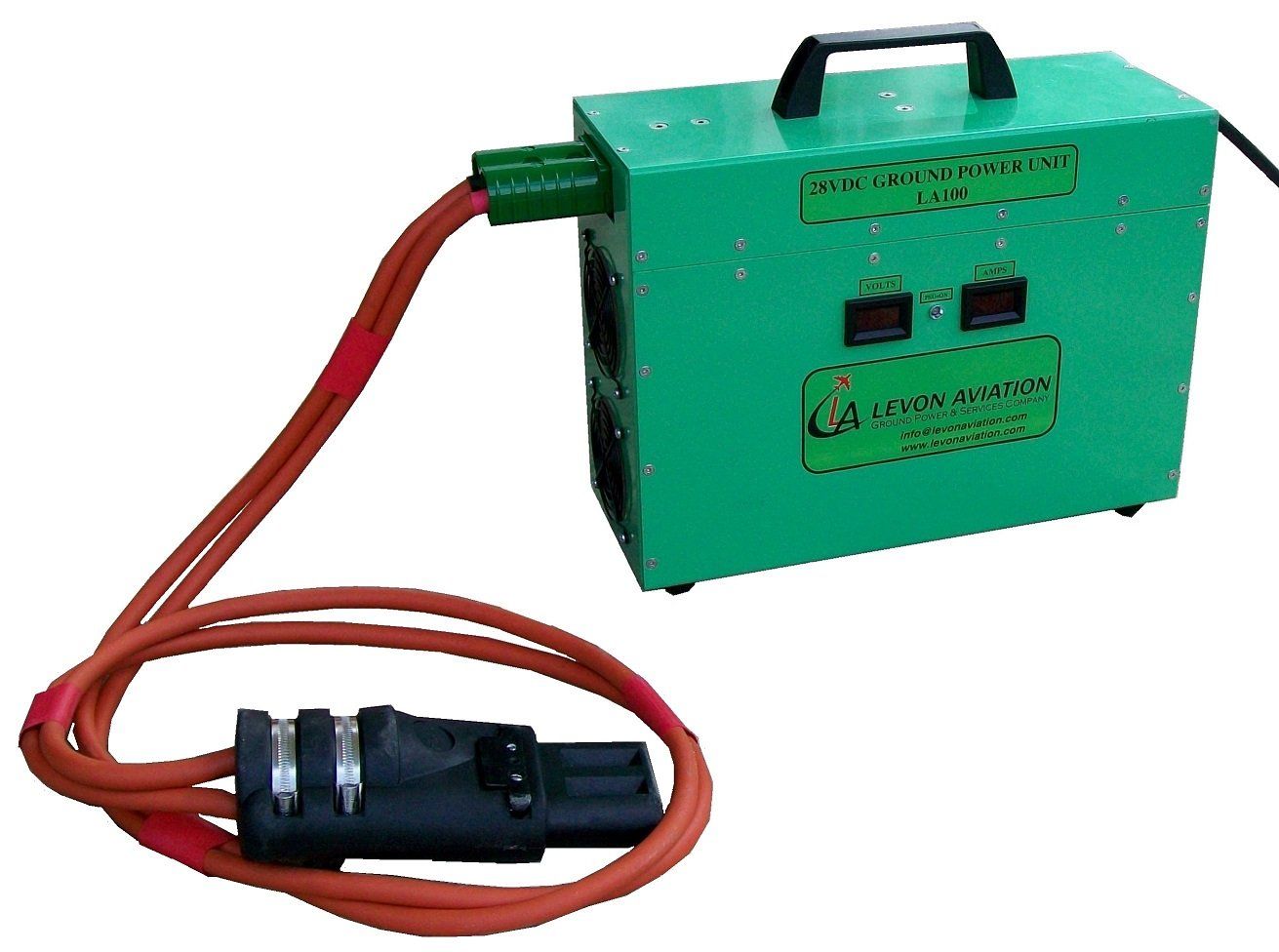

Levon Aviation portable Starter Units are fitted with the sealed lead acid, thin-plate technology batteries to achieve exceptionally high performance, energy density, reliability, and long, low-maintenance service. These units are used in maintenance hangers, airports and heliports, and are greatly appreciated by the aircraft owners in the private sector.
The Starters can be carried on board of the aircraft, which makes them essential as an emergency power for the helicopters landing in locations outside of their bases, such as offshore platforms. Also, the Starters are absolutely vital for cold weather conditions when the aircraft is parked outside, which can significantly decrease the capacity of the aircraft own batteries.
Features
- Simple daily operation
- Pure lead batteries, with thin plates technology, which allows to achieve exceptionally high performance, energy density, reliability, and long, low maintenance service life
- Supplied with 25m input cable
- Supplied with 3m output cable fitted with rubber Aircraft plug
- Mobile trolley fitted with caster wheels
- All models can be connected in parallel (with optional parallel cable) to increase output power
- Optional waterproof cover
- Approved as non-hazardous cargo for Ground, Sea, and Air Transport
STARTER POWER MODELS
| Model Specifications | Input Voltage | Input Current | Output Voltage | Battery Capacity | Starting Current | Length (mm) | Width (mm) | Height (mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| LA1000S (download datasheet) | 90-260VAC | 8A / 1 PHASE | 25.8VDC | 45A/Hr | 1000A | 420 | 160 | 320 | 28 |
| LA2000S (download datasheet) | 90-260VAC | 8A / 1 PHASE | 25.8VDC | 90A/Hr | 2000A | 420 | 320 | 320 | 56 |
| LA5000S (download datasheet) | 320-460VAC | 16A / 3 PHASE | 25.8VDC | 130A/Hr | 5000A | 500 | 400 | 400 | 85 |
| LA10000S (download datasheet) | 320-460VAC | 16A / 3 PHASE | 28.5VDC | 390A/Hr | 5000A | 600 | 500 | 500 | 220 |
